Tutorial 03: Your First Flying Agent

TL;DR: Three ingredients: an LcmNavigationManagerSVO in the level, a pawn with an AIController, and a Behavior Tree whose only task is LCM Fly To (SVO) pointed at a blackboard key. No C++.

Time: ~20 minutes. You'll end with: a pawn that flies through 3D space to a goal in your own level.

What we're building

   Level
     ├── LcmNavigationManagerSVO        ← the brain (one per level)
     ├── BP_MyFlyer  (Pawn)             ← the body
     │     └── AIController: BP_MyFlyerAI
     │             └── runs BT_MyFlyer
     │                     └── Blackboard: BB_MyFlyer  (Vector key "GoalLocation")
     └── TargetPoint                    ← where we want it to go

Step 1: Add the navigation manager

1. In the Place Actors panel, search LcmNavigationManagerSVO.
2. Drag one into your level. Position doesn't matter much. It uses its own location as the centre of the navigation volume, so put it roughly in the middle of your playable space.
3. Select it and set, in the Details panel:

World Extent measures outward from the actor, so 10000 gives you a 200 m cube centred on the manager. If your agents will fly outside that box, increase it: outside the volume there is no navigation data and paths will fail.

See what it built

Tick 5. Debug → Draw Debug Volumes and press Play. You'll see the octree drawn over your level: lots of big boxes in open air, small ones packed around geometry. This is the single most useful thing you can do while tuning. If a doorway you care about shows no small voxels, the pathfinder can't see it either.

Turn it back off when you're done; it's expensive to draw.

Step 2: Make the pawn

You need something that can move in 3D without gravity.

1. Content Browser → Add → Blueprint Class → Pawn. Name it BP_MyFlyer.
2. Open it and add a Floating Pawn Movement component. (Add Component → search "Floating Pawn Movement".) This is what makes it fly rather than fall.
3. Select FloatingPawnMovement and set Max Speed to 600. Match this to the task's Flight Speed later.
4. Add a Static Mesh component so you can see it. A cone or sphere is fine. Scale it down to something sensible.
5. In Class Defaults, set Auto Possess AI to Placed in World or Spawned.

Collision tip. For your first test, set the mesh's collision to No Collision. Physics fighting the navigation is a very common source of "my agent jitters / gets stuck", and you want a clean first result. Add collision back once flying works.

Step 3: Blackboard and Behavior Tree

The blackboard

1. Add → Artificial Intelligence → Blackboard. Name it BB_MyFlyer.
2. Add one key:
   • Type: Vector, Name: GoalLocation

The Fly To task also accepts an Object key holding an Actor. Use a Vector for now; the Actor form is what you'd use for chasing, covered at the end.

The behavior tree

1. Add → Artificial Intelligence → Behavior Tree. Name it BT_MyFlyer.
2. Open it, and in the Details panel set Blackboard Asset to BB_MyFlyer.
3. Drag from ROOT and add a Sequence.
4. Drag from the Sequence and add the task named Fly To; it appears in the tree as LCM Fly To (SVO).
5. Select that task and set:

Leave everything else at defaults for now.

Figure 03.1 - Where LCM Fly To (SVO) sits. This is the shipped BT_FlightBehavior demo, one step past what you have just built: the same Fly To task, with a goal picker in front of it and a retry-with-delay branch beside it so a failed plan does not kill the tree. Yours needs only the highlighted node to start flying.

The FlyTo settings, in full

You will not need most of these on day one, but it is worth knowing the shape of the surface before you go looking for a specific knob.

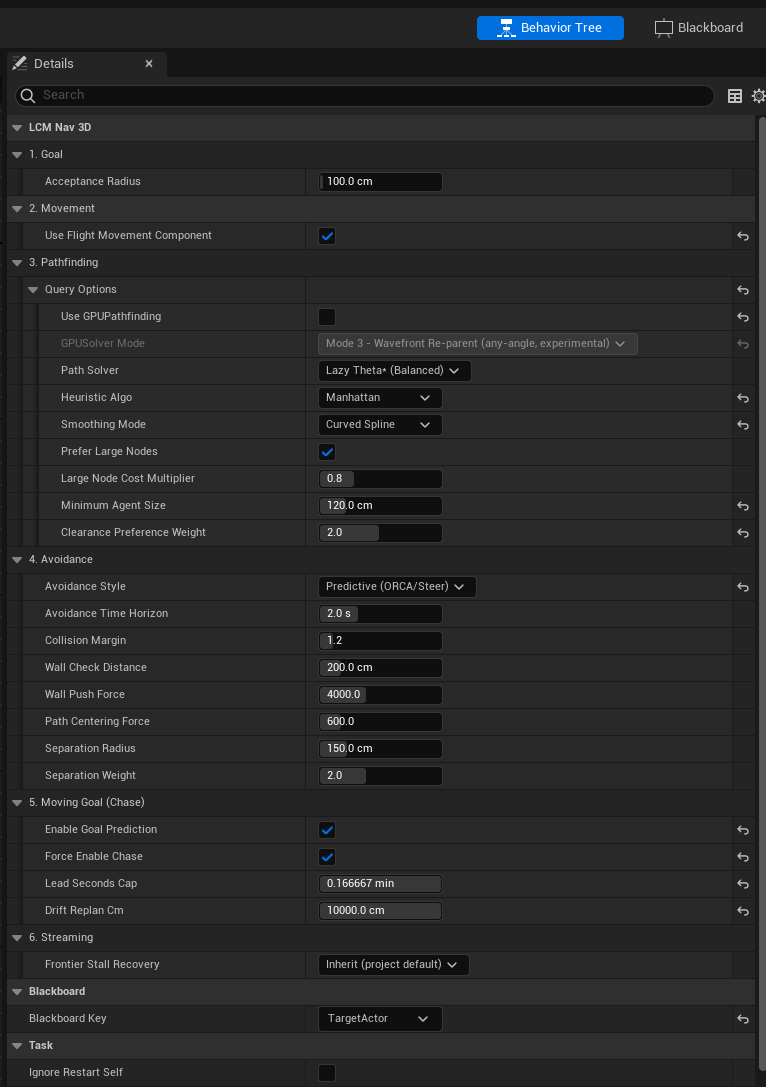

Figure 03.2 - The LCM Fly To task, all six sections. Read it as a pipeline: 1 Goal is where you are going, 2 Movement is what flies you there, 3 Pathfinding is how the route is computed, 4 Avoidance is how you get past other agents and walls, 5 Moving Goal is only for chasing something that moves, and 6 Streaming matters only in an infinite world.

Two fields decide the shape of everything below them:

• Use Flight Movement Component - ticked, the whole of section 2 collapses, because the movement component owns speed and dynamics instead of the task.
• Avoidance Style - set to CBS, the seven tuning fields under it hide; CBS is a planner-level solver and does not use them.

Sections you have not configured are not silently active. The panel hides any property the current configuration will ignore, so what you can see is what will run.

Step 4: The AI Controller

1. Add → Blueprint Class → AIController. Name it BP_MyFlyerAI.

2. Open it. On the Event BeginPlay node:

   • Add Run Behavior Tree, set BTAsset to BT_MyFlyer.

3. We need to put a goal in the blackboard. Still on BeginPlay, after Run Behavior Tree:

   • Add Get Blackboard → Set Value as Vector.
   • Key Name: GoalLocation
   • Value: for a first test, drag in a Get Actor Of Class node with Actor Class = TargetPoint, then GetActorLocation from it.

   BeginPlay ─→ Run Behavior Tree (BT_MyFlyer)
             └→ Set Value as Vector (Key: GoalLocation,
                                     Value: GetActorOfClass(TargetPoint).GetActorLocation)

4. Compile and save.

5. Go back to BP_MyFlyer → Class Defaults → set AI Controller Class to BP_MyFlyerAI.

Step 5: Fly

1. Drag a TargetPoint into your level, somewhere your flyer has to climb or route around geometry to reach. Put it up high: that's the whole point.
2. Drag BP_MyFlyer into the level, somewhere with open air around it.
3. Press Play.

Your pawn should take off and fly to the target point, routing around geometry in full 3D.

If it doesn't move

Work down this list in order. These are the actual causes, in the order they occur.

Full list: Troubleshooting.

Step 6: Make it look good

Defaults are functional, not beautiful. Two changes transform the motion:

On the LCM Fly To (SVO) task:

Path shape: a raw path is blocky. In Tutorial 02 we met the smoothing modes; Curved Spline is what makes flight look natural rather than like a series of ruler lines.

Step 7: Several agents at once

Duplicate BP_MyFlyer a few times and press Play. They'll fly the same route and crowd each other. Two settings fix that, both on the Fly To task:

And Avoidance Style:

For a handful of agents, Reactive is fine. For dozens sharing a corridor, Predictive looks markedly better.

Past a few hundred agents, stop adding pawns and move to Tutorial 06: Mass Entity.

Step 8: Chasing a moving target

To chase something instead of flying to a fixed point:

1. Change the blackboard key GoalLocation to type Object, with Base Class = Actor.
2. Set it to the actor you want chased.
3. On the Fly To task, tick Enable Goal Prediction.

With prediction on, the agent aims where the target will be rather than where it is, so it intercepts instead of trailing. Lead Seconds Cap (default 2.0) limits how far ahead it will extrapolate, and Drift Replan Cm (default 400) controls how far the target must move before the path is recomputed.

Recap

• One manager, finite world, sensible World Extent.
• Pawn + Floating Pawn Movement + Auto Possess AI.
• Blackboard key → LCM Fly To (SVO) → done.
• Draw Debug Volumes is your best debugging tool.
• Tune feel with Flight Style, banking and deceleration; tune crowds with avoidance and separation.

Next: Tutorial 04: The Same Agent in StateTree, or jump to Tutorial 05: Dynamic Obstacles to make the world move.
